Vector Store
A vector store is used to semantically index and search the processed chunks of knowledge base content. Flowable currently supports Elasticsearch, OpenAI Vector Store, and Custom implementations.
Each store comes with its own configuration requirements and capabilities.
Elasticsearch
Flowable supports vector-based retrieval using Elasticsearch, with customizable similarity metrics and embedding sources.
Supported Distance Types
- Cosine distance
- L2 norm
- Max inner product
Configuration Options
| Parameter | Description | Default |
|---|---|---|
| Top K | Number of most similar items to return | 4 |
| Num Candidates | Optimization parameter to narrow search scope | topK * 1.5 |
| Similarity Threshold | Filters out results below a given similarity score | 0 |
For L2 norm, the similarity threshold is internally calculated as:
1 - similarityThreshold

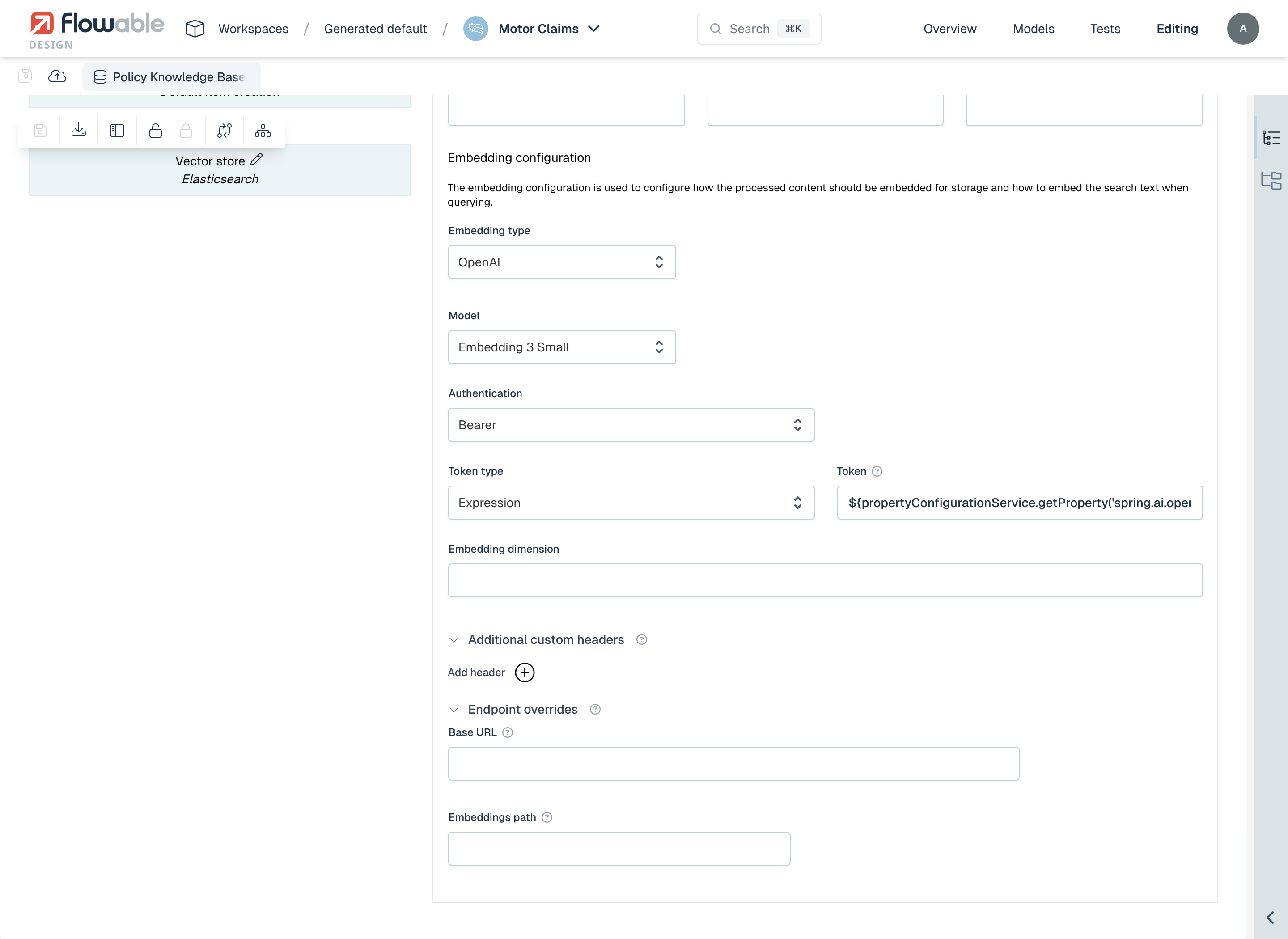

Embedding Configuration
The quality and performance of the vector store depend on the embedding model used to generate vectors.
OpenAI Embeddings
When using OpenAI as the embedding provider:
- Model: Embedding Ada 002, Embedding 3 Small, Embedding 3 Large, or custom, specify the embedding dimension then
- API Key: Either through configuration in the secrets or directly in the model
Azure OpenAI Embeddings
To configure Azure OpenAI:
- Endpoint: URL of the Azure OpenAI endpoint, e.g.
https://<name>.openai.azure.com/openai/deployments/<deployment-id>/embeddings?api-version=2023-05-15 - Deployment ID: E.g.
text-embedding-3-mall - Authentication: API key or OAuth client credentials
- Embedding dimension: Must be explicitly configured
Custom
The custom extraction APIs are currently experimental and may change in future releases.
For advanced use cases, you can implement your own embedder logic.
Implement the following Java interface: com.flowable.agent.engine.impl.knowledgebase.pipeline.steps.embedder.KnowledgeBaseEmbedder
OpenAI Vector Store
Flowable also supports integration with OpenAI’s native vector store.
Configuration Requirements
- Store name: Name of the store, the store will be created automatically
- Authentication: API-Key of OpenAI
Note that OpenAI handles indexing and similarity search internally, so no distance type or threshold is required on the Flowable side.
Custom
The custom vector store APIs are currently experimental and may change in future releases.
You can implement your own vector store integration by providing a Java implementation.
Interface to implement: com.flowable.agent.engine.impl.knowledgebase.pipeline.steps.vectorstore.KnowledgeBaseVectorStore
This allows complete control over:
- Vector indexing
- Similarity search logic
- Integration with third-party or in-house search engines
