Multipart Requests

2026.1.01+

REST service operations can be configured to send multipart/form-data requests. This is commonly used when an API expects file uploads, potentially combined with additional text or JSON metadata in a single request.

Enabling Multipart

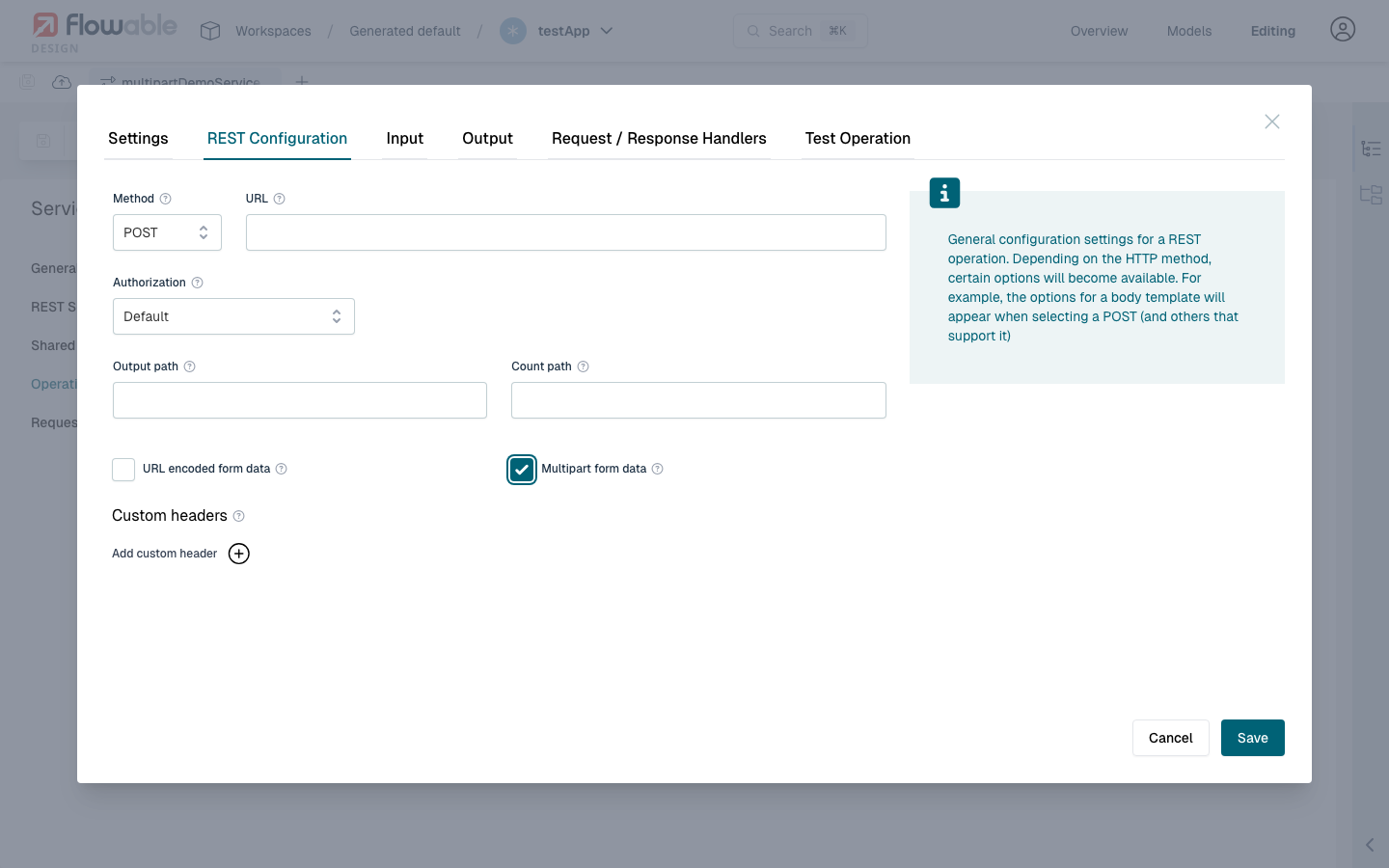

To enable multipart for a REST service operation, toggle the Multipart form data checkbox on the REST Configuration tab of the operation. The checkbox is only visible for HTTP methods that support a body (POST, PUT, PATCH, DELETE).

When multipart is enabled:

• The request body is sent as multipart/form-data instead of application/json.
• The Content Item type becomes available for input parameters (for file uploads).
• The Body Location and Excluded from Body fields are hidden, as they are not applicable.

Input Parameter Types in Multipart

Each input parameter of a multipart operation becomes a separate part in the request. The following parameter types are supported:

Parameter Type	Sent As	Default Content-Type
Content Item	Binary part (file)	Taken from the content item's MIME type (e.g. image/png)
String	Text part	text/plain
Json	Text part (serialized JSON)	application/json
Array	Text part (serialized JSON array)	application/json
Integer, Long, Double, Boolean	Text part (stringified value)	text/plain
Date	Text part (ISO 8601 formatted)	text/plain

Overriding the Content-Type with Mime Type Override

For Content Item, String, Json and Array parameters, the MIME type override field is available in the input parameter configuration. This allows overriding the default Content-Type of the multipart part.

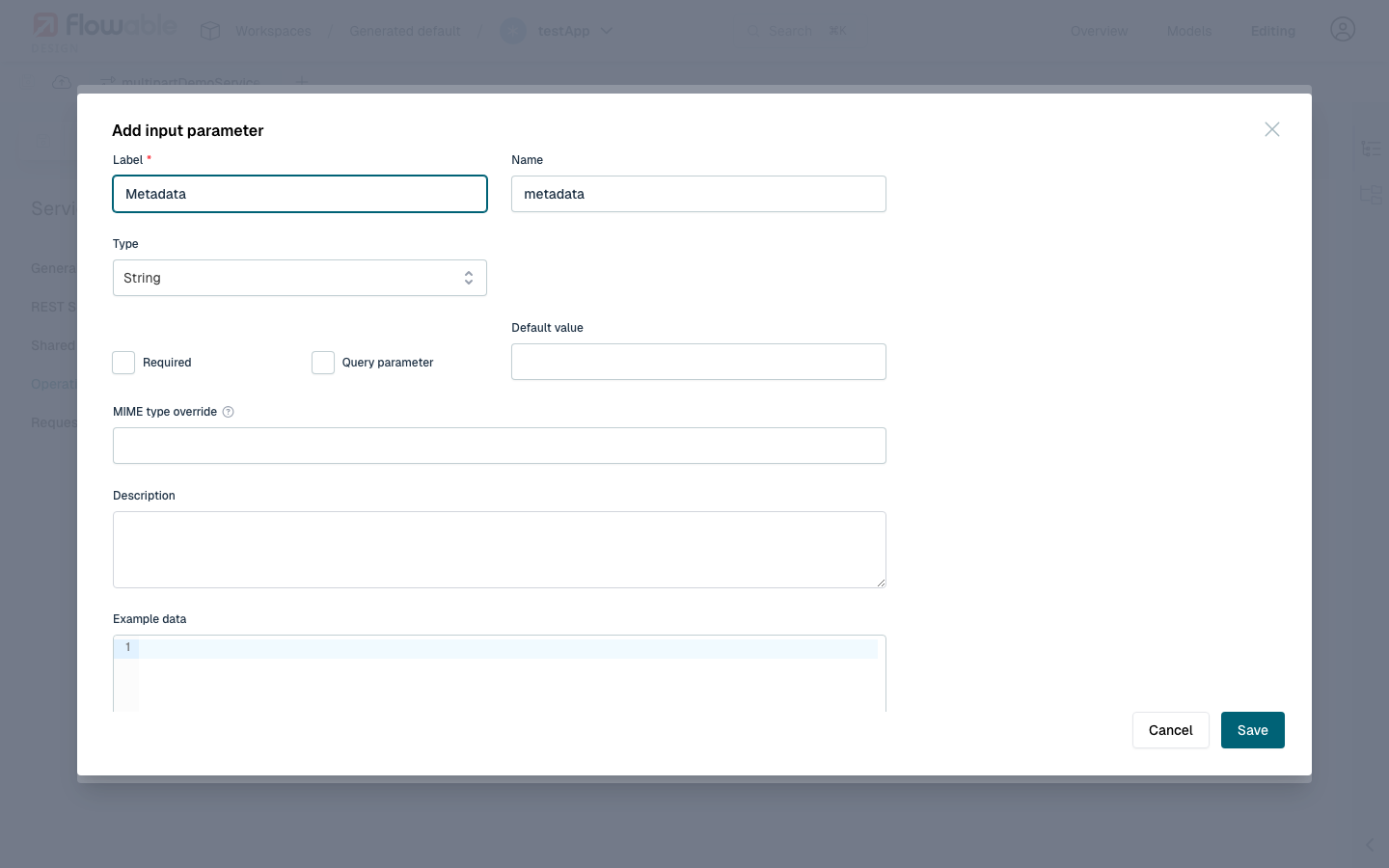

For example, with String as the parameter type, the MIME type override field is shown:

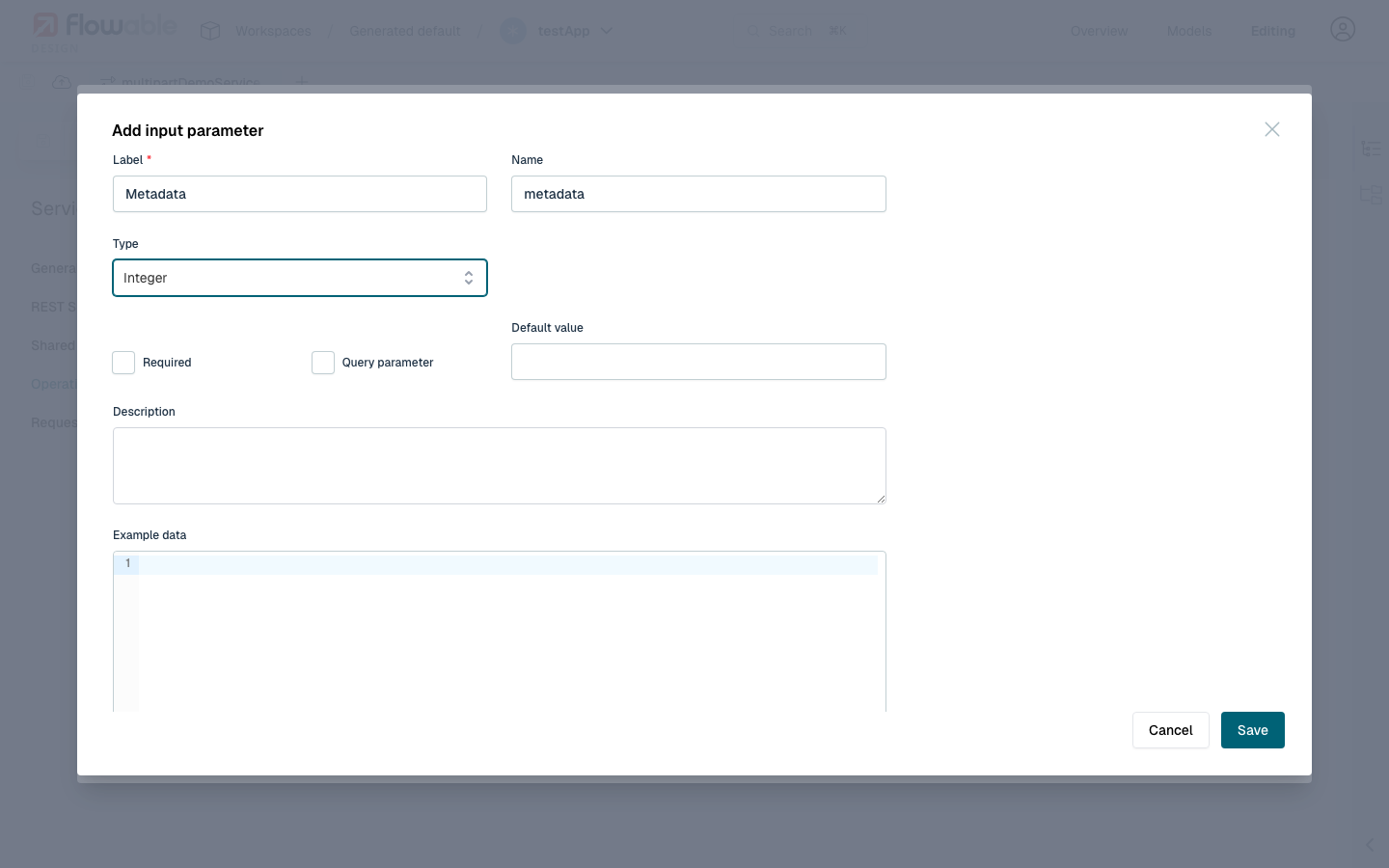

For primitive types like Integer, Long, Boolean or Date, the field is hidden because the Content-Type has no meaningful override — the value is always serialized as plain text:

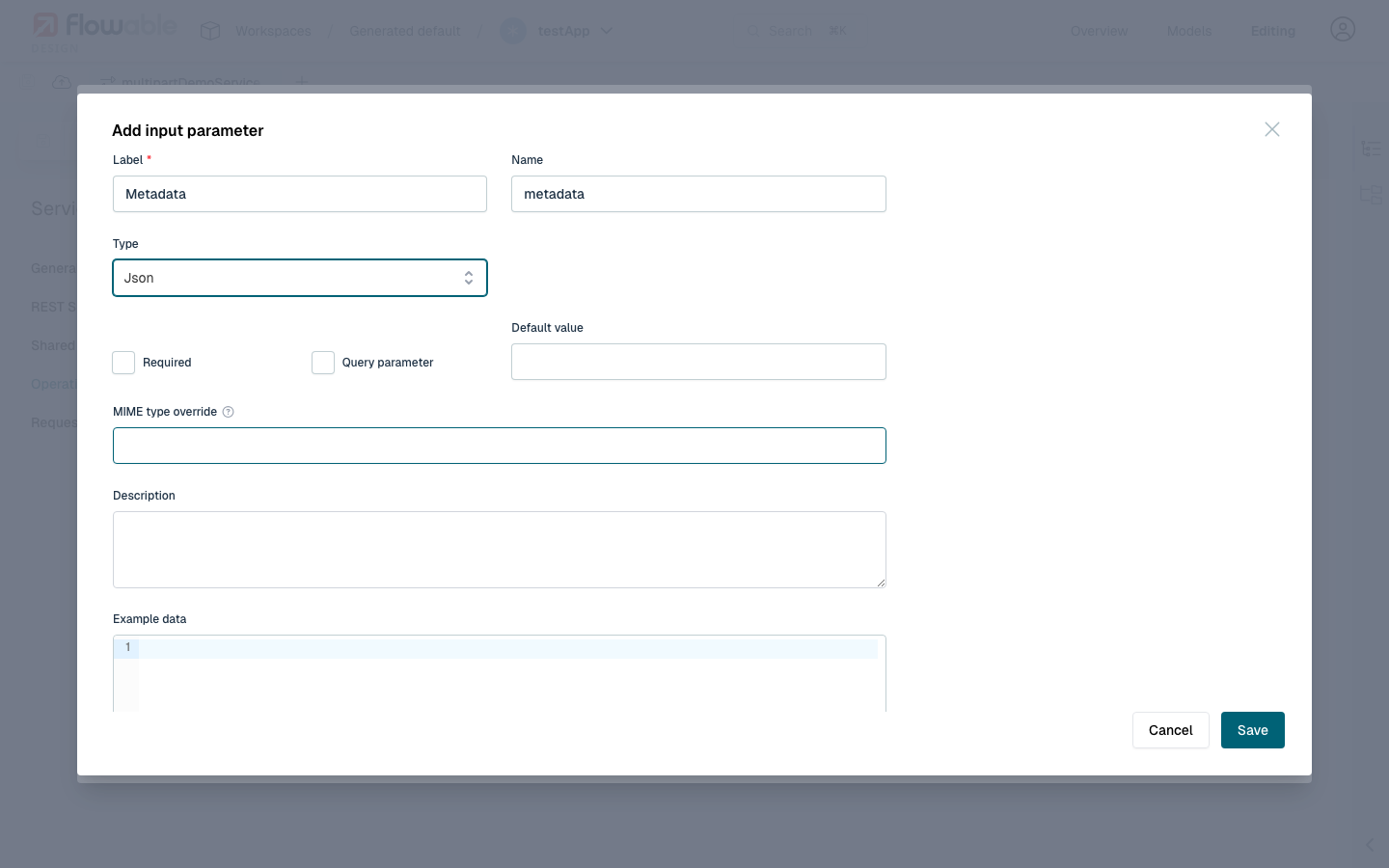

For Json and Array parameters the field is available as well, even though they already default to application/json:

A common use case for String parameters is sending raw JSON text with Content-Type: application/json. Some APIs require each multipart part to carry the correct Content-Type, and the default text/plain for String parts may not be accepted. For parameters typed as Json or Array, this is handled automatically — no override is needed.

For example, when a REST API expects a multipart request with a file upload and a JSON metadata payload:

Parameter	Type	Mime Type Override
file	Content Item	(uses the file's MIME type)
metadata	String	application/json

The resulting HTTP request would look like:

POST /api/upload HTTP/1.1
Content-Type: multipart/form-data; boundary=----boundary

------boundary
Content-Disposition: form-data; name="file"; filename="report.pdf"
Content-Type: application/pdf

<binary file data>
------boundary
Content-Disposition: form-data; name="metadata"
Content-Type: application/json

{"description": "Monthly report", "category": "finance"}
------boundary--

Without the Mime Type Override, the metadata part would be sent with Content-Type: text/plain.

Mixing File and Text Parameters

A multipart operation can have any number of input parameters. This allows combining file uploads with text or JSON form fields in a single request. For example:

Parameter	Type	Description
document	Content Item	The file to upload
title	String	A plain text title
tags	Array	A JSON array of tags
config	Json	A JSON configuration object

All parameters are sent as separate parts in the multipart request.

note

A single Content Item parameter can resolve to multiple files if the variable contains a list of content items. In that case, each file is sent as a separate part with the same field name.

Content Item Mime Type Override

For Content Item parameters, the Mime Type Override field works slightly differently: it replaces the MIME type that would normally be read from the content item itself. This is useful when the stored MIME type is incorrect or when the receiving API expects a specific Content-Type regardless of the actual file type.
